Get a free quote or proposal for

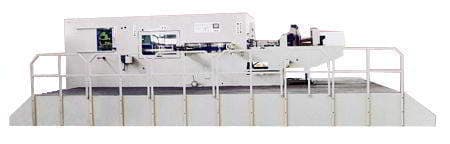

1620 Automatic Die-cutting and Creasing
DESCRIPTION: | |
1?FEEDER · Non-stop" L"type bottom feeding system with extended long feeding table and side lay · Pneumatic side push guide plate (right side only) · Motorized feeding roller · Paper hold down pressing plate and front lay with double sheet detector · Vacuum/blow pump · Slow down device at frontlay for gentle and precise sheet front edge registration 2?DIECUTTING SECTION ·Precision upper and lower platen surface ·Crank and worm gear, toggle drive system for the lower platen ·Safety system for the diecutting section ·Pneumatic clutch/brake ·State-of-the-art 3 cam index gripper chain drive ·Self-diagnostic trouble display ·Digital speed display ·Automatic recycling lubrication system with oil pressure gauge and oil pressure switch ·Sheet arrival and departure check photo sensor ·Overloading protection drive declutch ·Cutting pressure fine adjustment wheel with position indicate gauge ·8 pieces of gripper bar with 12 grippers per piece ·Center line system, make the cutting die and stripping die centered quickly ·Automatic main gripper drive chain lubrication 3?STRIPPING SECTION ·Heavy duty double action stripping system ·Upper and lower stripping tool mounting frames ·Motorized upper frame suspending hoister 4?DELIVERY ·Automatic delivery fork ·Air cylinder non-stop rack ·Electronic batch counter ·Conveyor belt delivery table ·Shutters for extra support to multi outs on ups Box layout sheets at delivery | |
COMMERCIAL DETAILS: | |
| Payment Terms | L/C |
MORE DETAILS: | |
| Sample Offered? | Yes |
| Sample Terms | Supplier sends free sample and buyer pays the shipping fee. |
| * Prices are subject to change. Please contact the supplier for the latest price. | |
It's quick & easy.
Basic Member
Susanna Sue
Assistant Manager - Xiamen Xianghan Co., Ltd.
Member Since: Jun 2009
Location
| Address Line1 | 11D-No.860 Xianyue Road Huli |
| City | Xiamen |
| Postal Code | 361009 |
| State | Fujian |
| Country | China (Mainland)  |
| Region | East Asia |
