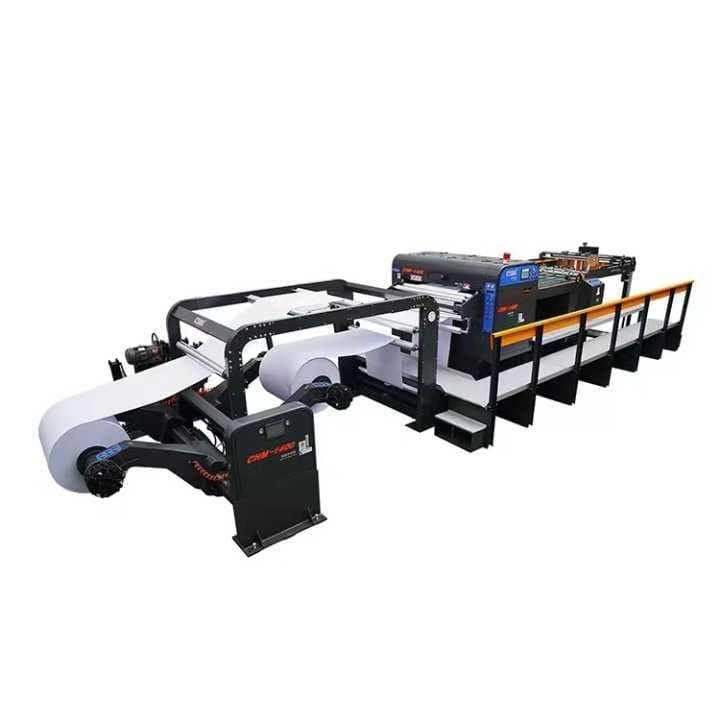

CHM-1400/ 1700/ 1900 Precision High Speed Sheeter Machine
DESCRIPTION: | |
Single Rotary Servo Precision High Speed Paper Sheeter, A servo-driven high speed, high precision and high efficiency paper sheeter. Capable on Sliting and cutting 60-550g/m2 wide range of paper: board paper, offset paper, art paper, Kraft paper, etc. Widely used by printing house, packaging and paper suppliers, paper mill... we also have 4 rolls, 5rolls, 6 rolls, 8 rolls type for thin paper, like newsprint, offset paper... Main Specifications: Reference weight of cutting paper: 60-550 GSM Cutting accuracy: 0.5mm tolerance allowed Max. Cutting speed: 300sheets/min Max. Cutting meter speed: 300m/min Cutting lenght range: 450-1650mm Max. Diameter of reel: 1800mm Paper stack height: 1300mm Max. Width of cutting paper: 1400mm/1700mm/1900mm Power consumption:about 5.9kwh Machine Features: 1) Shaftess unwinding stand: fit for 3", 6", 12" paper core. Clamp arm lifting by hydraulic cylinder. Air brake control the tention. 2) Web guiding: if with two,four or six rolls cutting together, it need to install the web guide, which can keep the edge side flat and smooth before cutting. 3) High precision single rotary blade cutting, designed for less cutting load and noise, and easy for setting and keep long lifespan. 4. Anti-static device: Plasma rod to eliminate the static electricity on paper. Installed in the middle of the conveyor belt. 5. Conveyoring unit: Horizontal and differential speed conveyor belt Japan imported, pressurized conveyor wheel can increase paper stability and avoid excursion. 6. Automatic meter counting and label inserter: Preset counting number on-screen and it can insert the label when reaching the preset data. 7. Automatic paper stacking unit: Hydraulic lifting paper stacker, it will automatically fall down when reaching a certain height. 8. Sheeter Machine controlling: It is designed for easy operation.Cutting length, quantity, and the total cutting quantity can be presetting in screen. Actual cutting length and cutting quantity will be display on the screen | |
COMMERCIAL DETAILS: | |
| Avg. Lead Time | 1 Year |
| Payment Options | L/C, T/T |
| Place of Origin | Dongguan, Guangdong, China |
| Shipping Port | Shenzhen, China |
MORE DETAILS: | |
| Product Condition | New |
| Model No. or Name | CHM- 1400/ 1700/ 1900 |
| Brand Name | CHM |
| Supply Capacity | 50 Sets / Month |
| Packaging | Film packaging |
| * Prices are subject to change. Please contact the supplier for the latest price. | |
It's quick & easy.
Basic Member
Ms. Flora Yin
Sales Manager - Dong Guan Chun Hing Mechanical Technology Co. Ltd.
Member Since: Dec 2024
Location
| Address Line1 | No. 2 Qiaotai Road |
| Address Line2 | West Road of Qiaoxin |
| City | Qiaotou Town |
| Postal Code | 523000 |
| District/County | Dongguan |
| State | Guangdong |
| Country | China (Mainland)  |
| Region | East Asia |
- Buyers from Pakistan, recently contacted this member.
Similar Products from Companies in Rest of China (Mainland)

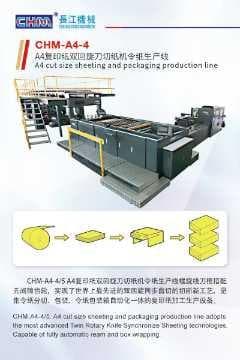

A4 Copy Paper Cutting Machine
