Dong Guan Chun Hing Mechanical Technology Co. Ltd.

DESCRIPTION:

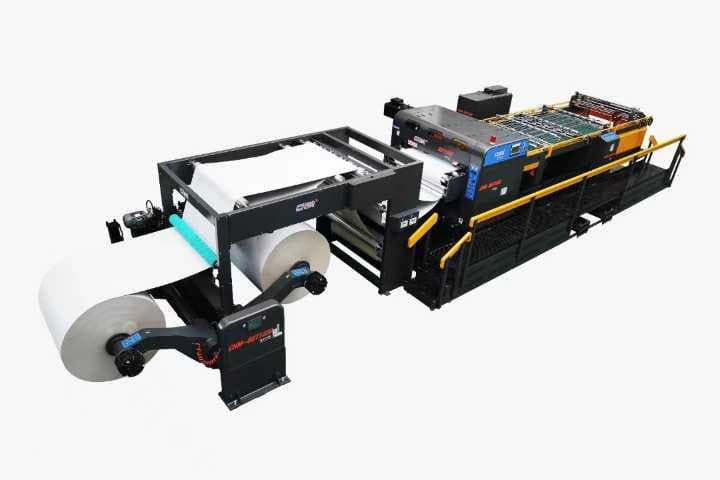

Dual-Rotary Sheeter, High Precision Twin Rotary synchronize-fly Paper Sheeter features fiber-less and clean cuts with high dimensional precisions. Best for Thick paper like board paper, RAT paper, craft paper and packing paper or board etc. Reduce Paper wool, No Spot, No Indentation, After the paper is cut, it can be directly onto the printing machine. CHM-SGT1400 Dual-Rotary Sheeter also called the synchro rotary sheeter concept was created to offer a modular system that allows the implementation of a wide range of options to meet the production needs of each customer. It is targeted at finishing rooms and paper and cardboard printing, as well as printing plants demanding high flexibility, strict production requirements and outstanding quality of the finished product. Double width configuration allowing to process wider reels and almost doubling the output. It is the optimum solution for converters or printers with medium production volumes. Main Specifications: Reference weight of cutting paper: 100 - 1000GSM Cutting accuracy: 0.5 mm tolerance allowed Max. Cutting speed: 300 sheets/min Max. Cutting meter speed: 300 m/min Cutting length range: 450-1650 mm Max. Diameter of reel: 1800 mm Paper stack height: 1300 mm Max. Width of cutting paper: 1400mm Weight:15000kg Power consumption: about 23kwh
