DESCRIPTION:

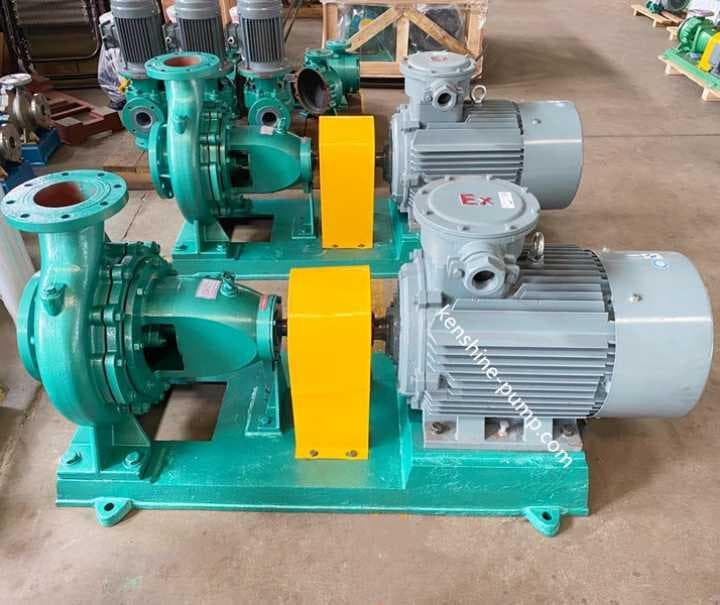

Type: IS Horizontal end suction water pump/ overhung centrifugal pump. This type of pump is suitable for industrial and urban water supply, drainage. It can also be used for agricultural drainage and irrigation. Pumped fluids: water or other similar liquids with physical and chemical properties like water. Fluids temperature is not high 80℃. It can also be used to transfer hot water up 105 degree Celsius when the pump is equipped with anti-high temperature mechanical seal Type IS horizontal single stage single suction centrifugal water pump is designed according to the performance and size of the national standard ISO2858. It is mainly composed of pump body (1), pump cover (2), impeller (3), shaft (4), sealing ring (5), shaft sleeve and suspension bearing parts (12). Type IS horizontal end suction centrifugal pump is for the structure of back pull out. It is not necessary to remove suction and discharge pipeline when disconnecting pump cover and impeller. The suspension frame is equipped with two ball bearings, lubricated with machine oil or grease. The pump is directly driven by an electric motor through an elastic coupling. Vortex chamber, foot, inlet flange and outlet flange are casted as a whole.
