DESCRIPTION:

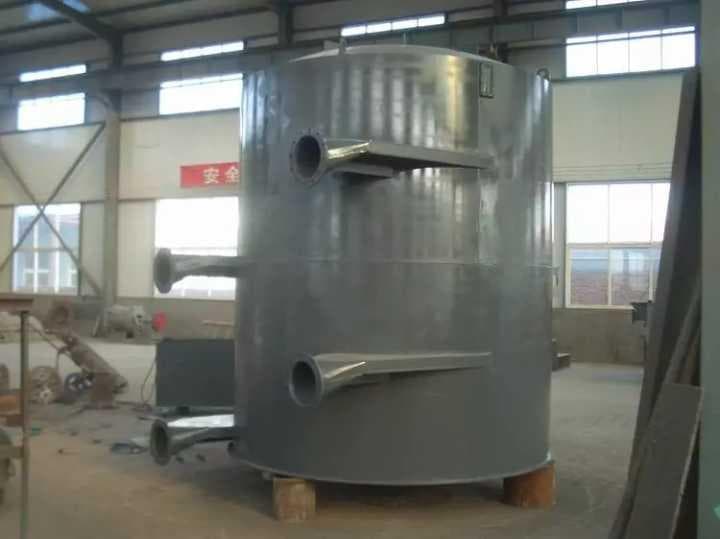

Flotation Deinking Machine for stock preparation. The flotation deinking cell is suitable for floatation deinking all kinds of waste paper pulp. Some lightweight plastic can also be removed. Flotation deinking cells absorbed the advanced technology. The ink will be processed in a closed environmental situation without material overflow. The special structure is designed with different grade separations to prevent different material mixtures. Technical Parameters: Dimension: 800x920 - 2600x2900 Flow rate: 256-1600 m3/h Throughput: 30-460 m3/h Ink removal rate: 90-92% Inlet consistency: 0.8-1.2% PH value of the stock: 9-11 Control of pump pressure: 0.1-0.15 Features: 1. Optimized injector type can gain broad-spectrum air bubbles, which can efficiently remove ink particles and dirt within the wider size range. 2. Able to gain good cleanliness of pulp, at the same time, part of stickies and filler in the pulp can also be removed. Applications: It is designed to remove hydrophobic impurities such as ink particles, gooey, plastics, or filings in waste paper stock. Design Features: It's able to remove a wide range of ink particles with sizes of 5 to 500 Micra. lt is designed with a built-in aeration component in favor of the process gas loop. owing to the reasonable combination of the troughs, it is easy to control fluid level, which results in reliable operation and a wide range of capacity. Two-stage flotation system (first stage plus second stage) guarantees the maximum removal of the impurities such as ink particles as well as the least loss of fiber. Two-stage flotation system (front stage plus backstage) is arranged in a cascade and less space is required.
