DESCRIPTION:

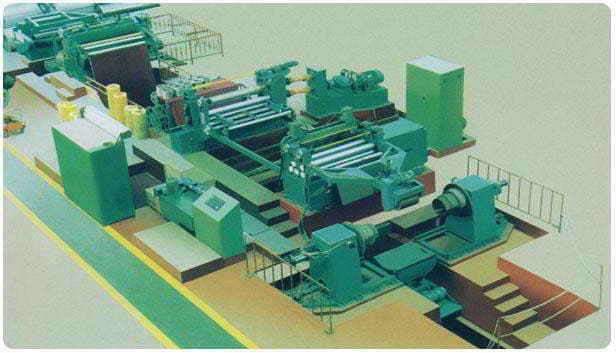

high speed uncoiling-slitting-recoiling line This line is used for coil with different specifications, through uncoiling-slitting-recoiling to needed width coil for the application of all kinds of stamping line. This line is reasonable in layout, easy operation, high level of automation, high productivity which could processing all kinds of CR and HR coil, silicon coil, stainless coil, colored coil, aluminum coil, galvanize coil or painted coil. This line is broadly applying in metal plate processing industry, like car, container, household appliance, packing, construction material, etc. This line is composed of coil car, uncoiler, slitter, scrap winder, shearer cutting coil head or tail, tension pad and recoiler, etc. as well as pendulum middle bridge, pinch device, steering device. This line is an auto coil processing equipment which integrate mechanical, electrical, hydraulic, pneumatic all together. main technical parameter model/name 2x1300 2x1600 3x1300 3x1600 Coil thickness (mm) 0.3-2 0.3-2 0.5-3 0.5-3 Coil width(mm) 600-1300 600-1600 600-1300 600-1600 slitting strips 2-30 2-30 2-15 2-15 Strip width precision ±0.1 ±0.1 ±0.15 ±0.15 line speed 10-120 10-120 10-120 10-120 coil weight(T) 10 15 20 30 Coil I.D.(mm) ?508 ?508 ?508,?610 ?508,?610 Recoiling I.D.(mm) ?508 ?508 ?508 ?610 Main shaft Dia 205 240 240 240 Samway is professional manufacturing all kinds of Leveling and Cut to Length Line, Slitting Line, Galvanizing Line and other related series products, etc, at same time focus on high-tech products research, design and development. Leveling and Cut to Length Line series with thickness from 0.18mm to 25mm, width from 200mm to 3000mm, cutting length tolerance within ±0.1mm which are apply for various specifications and different materials coil. Slitting Line with thickness from 0.25mm to 14mm, width form 200-3000mm. We have high, average, normal speed design in which high speed, high precision leveling line can reach to 35pcs/min by 2m length plate, high speed slitting line can reach to 120m/min.
