DESCRIPTION:

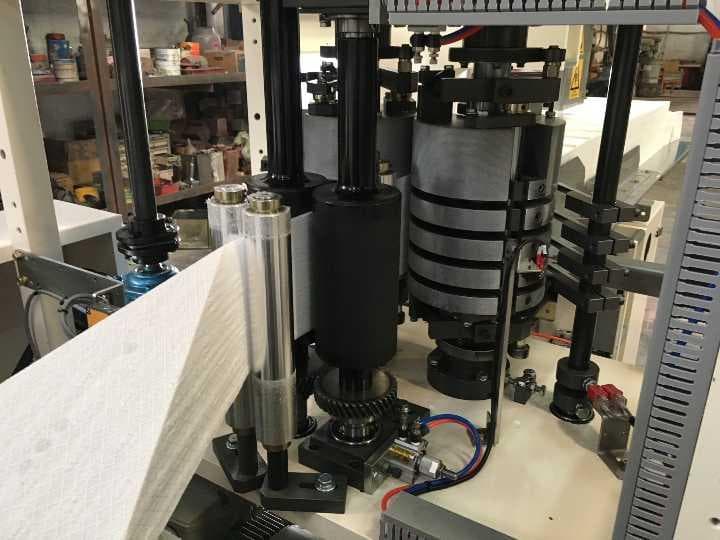

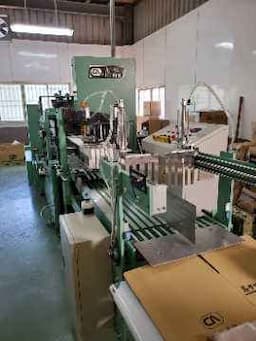

Paper Napkin Folding Machine Comes with accessaries Model : JY330B-1T2E Manufacturing year : 2017 Technical Data: * No. Of Lane : 2 Lanes delivery * Folding system : Mechanical system * Folded Type : 1/4-fold * Unfold size (W x L) : 330mm (W) x 330mm (L) * Folded size (W x L) : 165mm (W) x 165mm (L) ± 3mm tolerance for 1/4-fold * Operate capacity : 100 ~150 Meter/ per min. (400~500 sheets/per min. Depend on paper quality) * Converting web : 1 ply napkin paper 18~25g/㎡, 2 ply napkin paper 18~25g/㎡ * Parent roll width (working width) : 330mm * Parent roll diameter : Max.60" = 1524mm * Shaft Core diameter : 3" = 76.2mm Unwinding Unit: • Single unwinding stand • Pneumatically operated reel lifter • Horizontal movement of paper roll - manual • Mechanical adjusting tension speed of tissue paper • Automatic paper roll small detector • Automatic paper roll expiry detector Embossing Unit: Two (2) embossing units. (Steel roll to wood pulp paper roll.) • First embossing unit with continuous and full embossing pattern No. 2A1932.-3. • Second embossing unit is twin mold edge embossing pattern No. 2A1890 Band Saw cutting system with delivery table x 1 set. Consisting of: • Automatic grinding blade device (Automatic sharpening of blade). • Sharpening by pneumatic driven via automatic device. • Automatic electronic counter count adjustment device for sharpening time and interval time. • Grinding stones through motor driven to sharpening saw blade. • Adjusting grinding stones unit via manual device. • Sharpening section: by pneumatically driven via automatic device • Grinding stones by CBN (= industrial diamond with metal coating) • Quick-change band saw knife device.   Electricals: Voltage : 380V, 50Hz Power requirement * 5.5Kw motor + inverter for main machine * 2.2Kw motor for band saw Air consumption : 0.3L/min (Air source 6-8 kg/cm² Machine color : Rose white
