Ragger
DESCRIPTION: | |

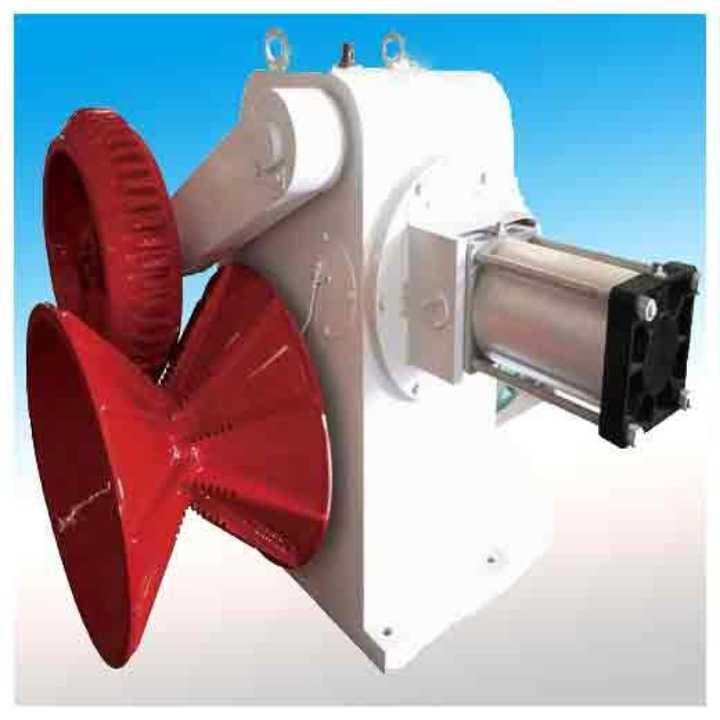

Ragger for paper pulp making Ragger is used for removing all kinds of winding impurities in pulp, such as iron sire, rope, plastics and cotton yard, etc. The motor is directly connected with the reducer. Operation and running are stable. The roping press wheel is controlled by an air cylinder, which can make sure of uniformly drawing out roped impurities. Technical Parameters of Ragger Ragging speed: 0-30m/h Compressed air pressure: ≥0.15 Mpa Max Rope Diameter: 400mm Transmission mode: Gear reduction motor drive Motor: 1.1kW braking type Pressurized form: Single cylinder pressurization Pressure roller form: with anti-slip strip Bottom roll form: Toothed anti-slip Pneumatic cylinder dia Packing size: 2000*1750*1850 mm Structure of Ragger 1. The ragger mainly consists of the case, drive unit, winch wheel, elevator with loading wheel, etc. 2. The drive unit consists of the drive shaft, bearing, winch wheel, and the 2-stage reducer connected directly with the motor. 3. The elevator with a loading wheel consists of the pneumatic cylinder, reversing valve, loading wheel, loading arm, etc. | |
COMMERCIAL DETAILS: | |
| Min Order Qty. | 1 Unit |
| Avg. Lead Time | 20 Days |
| FOB Price * | US$12000 / Unit |
| Payment Terms | 50% T/T in advance, the balance before shipment |
| Payment Options | L/C, T/T |
| Place of Origin | China |
| Shipping Port | Tianjin, Qingdao, Shanghai, Ningbo |
MORE DETAILS: | |
| Model No. or Name | HT-Ragger |
| Brand Name | HUATAO |
| Supply Capacity | 20 Units / Month |
| Packaging | Wooden shipping crate |
| Sample Offered? | No |
| * Prices are subject to change. Please contact the supplier for the latest price. | |
