Single-wall Corrugated Board Production
DESCRIPTION: | |

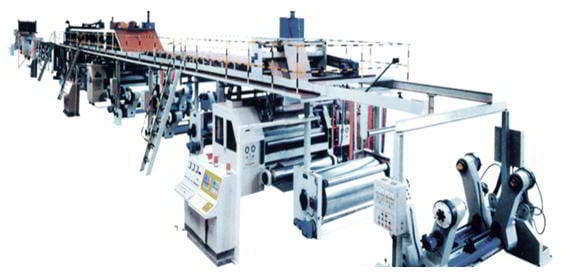

This finished product, single wall corrugated board, is mainly introduced as inner packing material. It can be also used as outer packing material for light or small-sized commodities. Four flutes A, B, C and E as well as special customer-tailored flutes are provided. Steam heating system and oil heating system are optional (but oil heating is not suitable for line with speed above 100m/min). The standard three ply line is made up of Single facer (1; mill roll stand (2; preheater (optional in case of speed below 120m/min; conveying bridge (1; glue machine (1; double facer (1; slitter scorer (1) (thin-blade or flaring slitting tool is optional; cut-off (1; stacker (1). Speed of 80m/min, 100m/min, 120 m/min, 150m/min or 180 m/min is offered to meet customer's requirement. MAIN TECHNICAL PARAMETER 1?Model Type: WJ180-1600-1 2?Maximum Mechanical Speed:180 m/min 3?Breath:1600 mm 4?Flute Type:UV C and B (may select flute A?BC?D?E alternate | |
COMMERCIAL DETAILS: | |
| Payment Terms | T/T |
MORE DETAILS: | |
| Sample Offered? | Yes |
| Sample Terms | Buyer pays the sample cost and the shipping fee. |
| * Prices are subject to change. Please contact the supplier for the latest price. | |
