DESCRIPTION:

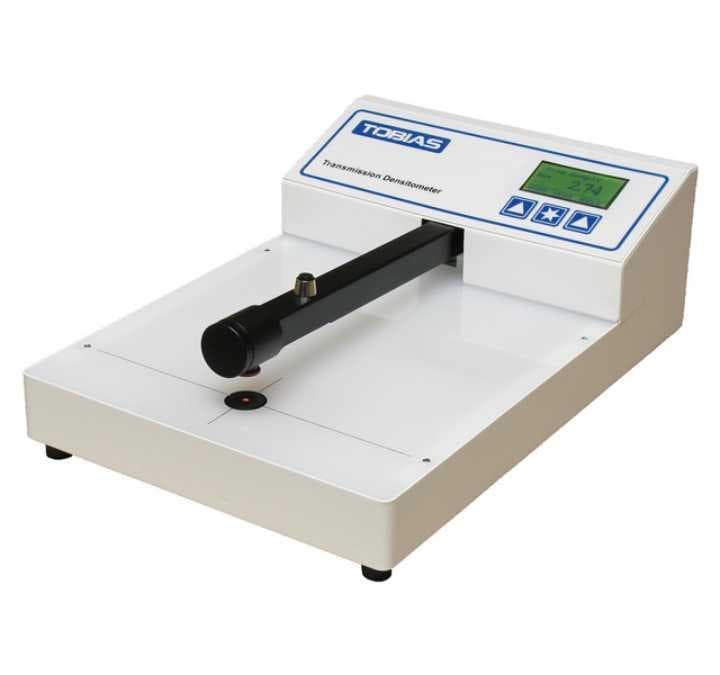

These tabletop densitometers display transmission density and density differences. The TBX1500 also calculates positive and negative dot areas. Single-Step measurement of Transmission Optical Density and Optical Dot Area The Tobias TBX1000™ and TBX1500™ Transmission Densitometers measure transmission optical density. The TBX1500 also calculates positive and negative dot areas. The unite have been designed for user convenience and error-free measurement. The data can be uploaded to a spreadsheet via the USB port using an optional data transfer program (p/n A2128). To meet special requirements an optional filter carrier may be used allowing supplementary filters to isolate a portion of the spectrum that may be of interest. The TBX1000 and TBX1500 have been designed for user convenience and error-free measurement. Table illumination facilitates film placement and the entire operation requires only one hand, leaving the other free for note-taking or sample repositioning. The unit has both an absolute mode and a relative mode, which can be used for comparing the measured values to a previously stored value for consistent process control. B&W transmission densities Calculates positive and negative dot area (TBX1500) Softkey menu operation 7-inch throat to measure large samples Readings are very repeatable with a large degree of accuracy USB port standard Software calibration Optional bandpass filter Switchable LED table lamps Cost-effective and affordable quality control system
