DESCRIPTION:

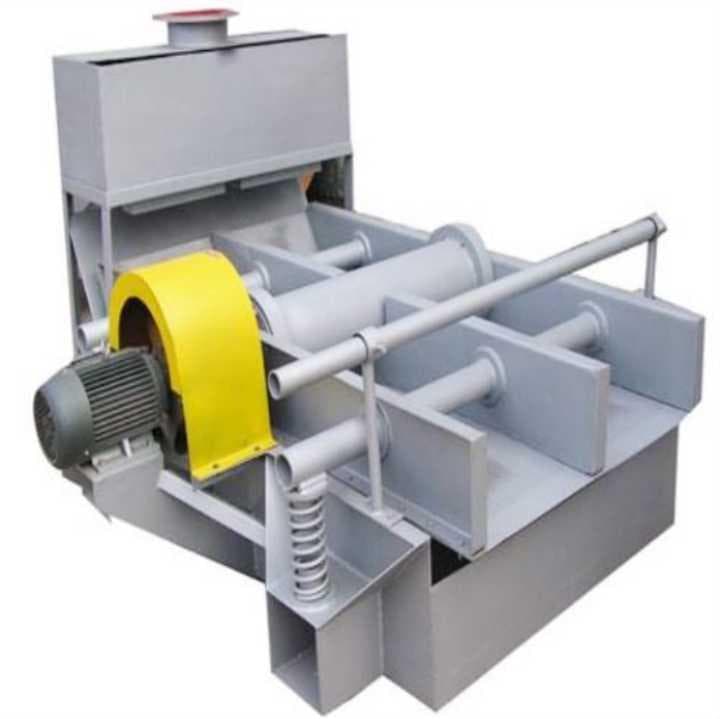

Vibrating Screen for stock preparation A vibrating screen is used for the removal of various impurities in pulp suspension. When the cleaner working, the stock is run to the bottom of the gas seal room by the stock level controlling device, and the screen body is vibrated under the effect of the vibration producer, then the pressure pulse is formed. This cleaning method by pressure pulse can not only make the screen plate clean but decrease the load on the screen plate. Technical Parameters of Vibrating Screen Screen area: 1-4m2 The density of inflow pulp - hole screen: 1.2-1.5% The density of inflow pulp - slot screen: 0.5-0.8% The capacity of the main flow - hole screen: 7.5-100 tons/day The capacity of the main flow - slot screen: 3.7-30 tons/day Power of motor: 2.2-5.5kW Features of Vibrating Screen 1. Shock-relieving assembly is made from special rubber, therefore, the screen basket is stable during operation, with low noise. 2. For different areas, the hole diameter arrangement of the screen plate is different, which is beneficial for removing impurities and reducing fiber loss. 3. Air-seal chamber with a special design can make the self-washing ability of the screen plate strong.
