Dongfang Carton Machinery Industry Co.,LTD

DESCRIPTION:

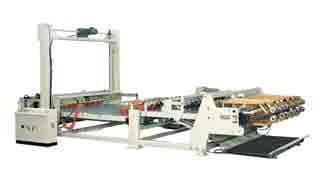

Features: 1.Vibrating Layboy Section for scrap removal. The vibrating device adjusting is electrical controlled. And the layboy down-up is pneumatic. 2.Blower is installed in the Layboy Section. So that the scrap could be blew away. Two rows of brushes in Layboy Section. Make sure that the redundant scrap could be brushed away. 3.Vacuum Transfer Belts on Incline Section. 4.Ability to run up to four out across the machines. 5. Two sectioned transfer belt speed synchronized with the press speed when inclined with the printing machine. But also could be adjusted separately. 6. Deck mounted zero crush snubbing wheels eliminate problems associated with blanks diving into the hopper by keeping the trial edge of the product down as it moves under the wheels. 7.Operator and Drive Side Hopper Tampers to square the boards in the stack. 8.Maximum stack height 1700mm. 9.Heavy Duty Chain Support of the Stacking Deck with safety drop system. 10. Integrated PLC control system allows for complete stacker control. The system has a boom mounted touch screen and Programmable Logic Controller(PLC). A full maintenance screen features system and diagnosis.
