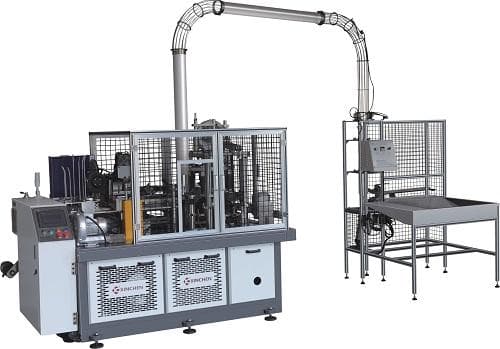

XC-116 Intelligent Paper Cup Machine
DESCRIPTION: | |
XC-116 intelligent paper cup machine could produce 2.5oz - 16oz paper cup, with 90-120pcs/min speed. Machine adopts a desktop layout, with double-layer separation of transmission and forming. The transmission part adopts the horizontal and vertical axis connection transmission structure, the gears are transmitted in stages, and the mechanical lubrication is continuously supplied with oil. They are all installed in the frame under the table. The forming mold is assembled above the table to avoid cross-contamination and facilitate cleaning and maintenance. The machine adopts PLC and touch screen control, servo feeding and photoelectric detection. Machine Parameters: 1. Speed: 90-120pcs/min 2. Produce Range: 2.5-16oz (100ml-450ml) 3. Paper Material: 150-350gsm(Single/Double-PE) 4. Dimension: 2300*1450*2050mm (L*W*H) 5. Weight: 2700KG 6. Power: 3 phrase 380V 18KW 7. Air Source: 0.4m³/min 0.6-0.8mpa | |
COMMERCIAL DETAILS: | |
| Min Order Qty. | 1 Set |
| Avg. Lead Time | 35 Days |
| Place of Origin | China |
| Shipping Port | Ningbo Port, Wenzhou Port |
MORE DETAILS: | |
| Product Condition | New |
| Model No. or Name | XC-116 |
| Brand Name | Xinchen |
| Supply Capacity | 30 Sets / Month |
| Sample Offered? | Not Applicable |
| * Prices are subject to change. Please contact the supplier for the latest price. | |
