DESCRIPTION:

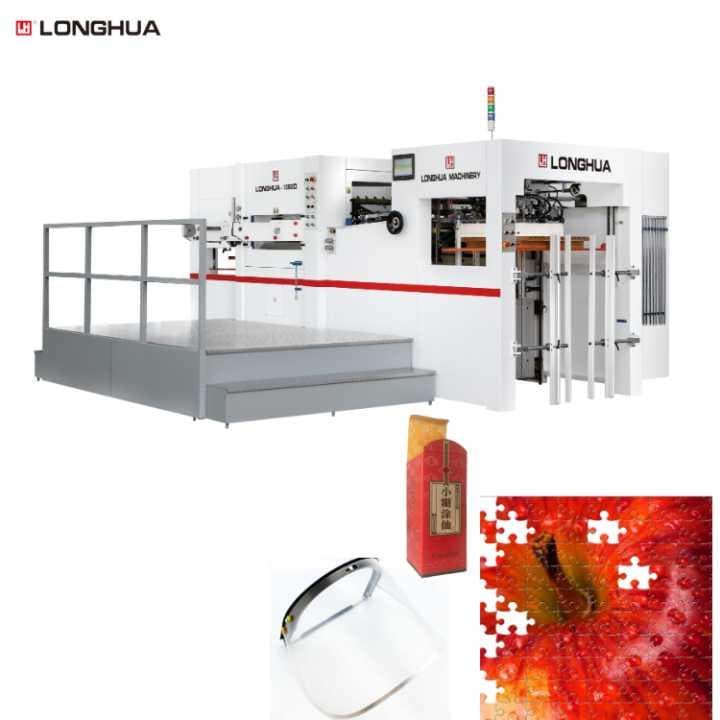

LH-1050D, automatic embossing die cutting machine ,which has up to 580 tons of pressure, coupled with 12 independent heating temperature zones, makes the processes of heat embossing, heat male and female embossing and heat indentation to be done easily, which is the prefect combination of temperature and pressure. The maximum thickness of 16 cm machine wall and other reinforcement parts of the machine , makes the process of embossing stable matchless, which keep the machine precision in a high level and also ensure the safety of the operator. Applicable Industries: Food & Beverage Factory, Printing Shops, Food & Beverage Shops, Advertising Company, package plant Video outgoing-inspection: Provided Machinery Test Report: Provided Warranty of core components: 1 Year Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump Place of Origin: Zhejiang, China Warranty: 1 Year Key Selling Points: High-accuracy Automatic Grade: Automatic Voltage: 380V Specifications: Dimension(L*W*H): 7400*4200*2100mm Max. Sheet Size: 1050 x 750 mm Min. Sheet Size: 400 x 360 mm Max. Cutting Size: 1040 x 720 mm Inner Chase Size: 1080 x 745 mm Cutting Pressure: 580 tons Gripper Margin Setting: 8 mm Total Power: 20 kw Size of Machine: 7400 x 4200 x 2100 mm Total Weight: 18.9 tons Production precision: ±0.075mm
