DESCRIPTION:

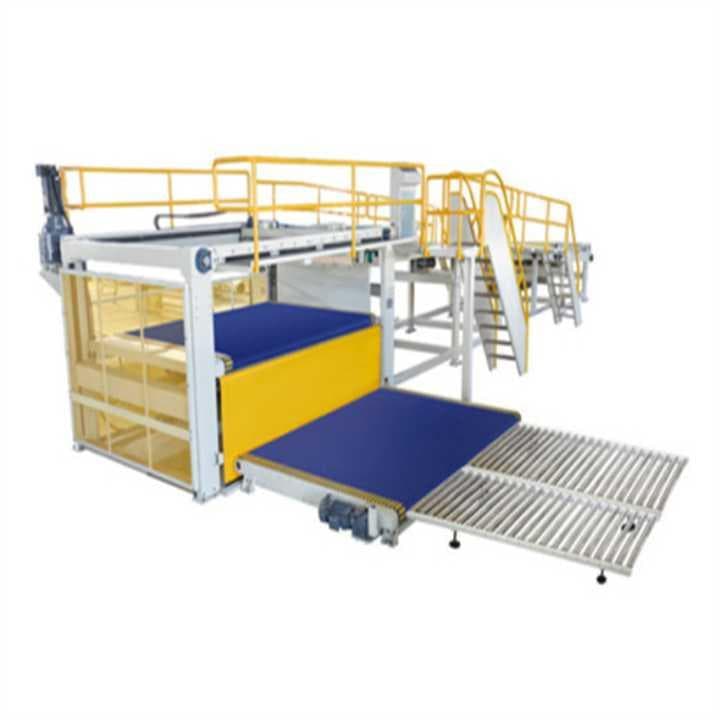

Auto Stacker for corrugated cardboard production line Basket Down Stacker available breadth: 1400-2200mm Frequency conversion motor auto down stacker Applicable to be a production line whose max speed is 180m/min Max sheet length: 3500mm max stacking height: 1500mm Parameters: Width mm Dimension (LxWxH) mm Wight T Gross Power kW 1400 17000 x 2400 x 3200 9 24 1600 17000 x 2600 x 3200 10 24 1800 17000 x 2800 x 3200 11 24 2000 17000 x 3000 x 3200 12 24 2200 17000 x 3200 x 3200 13 24 Structure and Features: 1. Connected with the production management system, it can read order and change order, which make the orders apart correct and fast. it also can work by itself Stacking of multi orders. 2. The conveyor belt was separated to be 4 sections, driven by an ac frequency conversion motor, running synchronized with the production line, it brings the suitable stack proportion according to the sheet length, which makes the paper board stack in good order. 3. The transducer controls the frequency conversion motor to drive the roller running, speed up and down stably, the board comes out easily, hard to be overturned. 4. Transducer controls the brake motor to drive the elevator, with counterbalance, speed up and down stably, speed counterchanges reasonably, make stacking freer, and get rid of the paper board crease, improving the life of the machine. 5. Rolls form close and lift with elevator, to reduce the waste.
