DESCRIPTION:

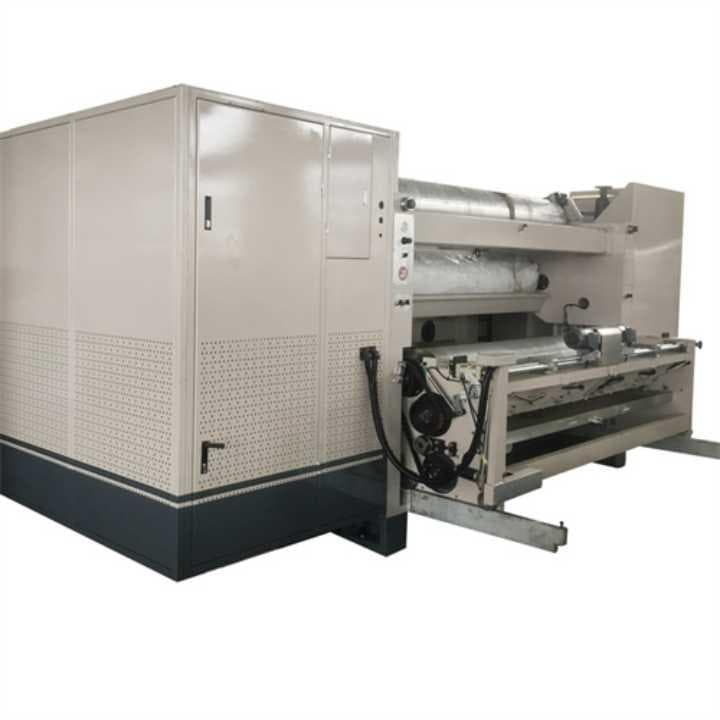

Cassette Type Single Facer for cardboard production. Cassette Type Single Facer provides convenient maintenance and provides quick flute change. The corrugating roll changing can be accomplished within 10 minutes utilizing a motorized cassette trolley, by which the cassette is delivered into the machine and fixed on the base of the machine. Parameters: Paper Width(mm) External Dimensions(mm) Weight T Total Power Of Motor kW 1400 5300x3100x2600 12 59.2 1600 5500x3100x2600 14 59.2 1800 5700x3100x2600 16 59.2 2000 5900x3100x2600 18 71.2 2200 6100x3100x2600 20 71.2 2300 6300x3100x2600 21 71.2 2500 6500x3100x2600 23 81.2 Features: 1. Maximum mechanical speed is 250m/min. 2. The diameter of the corrugating rollers is 380 mm. The diameter of the pressure roller is 520 mm. The diameter of the surfaces of the glue roller is 302 mm, and the diameter of the doctor roller is 170mm. 3. The machine adopts a positive pressure air cushion paper guide, with high utilization of heat energy, and good quality of corrugated shaping. 4. Corrugated roller adopts positive pressure cassette type. It’s under the pressure roller, so as to lower the center of gravity of the machine. It’s smooth when under high-speed operation and reduces vibration, so it’s more stable and smooth during operation. Corrugated roller exchange is safer and faster. 5. Corrugated roller, pressure roller and glue roller adopts individual driving reduction box, to isolate vibration. The oil immersion lubrication and high-precision gear driving ensure stability and reliability during operation. 6. Corrugated roller sets get in and out hydraulic automatically, so as to exchange different flutes rapidly. 7. Individual glue section could move out from the main machine, and it’s easy to clean and maintain. An electric glue partition device is provided to give convenient and rapid paper width adjustment. 8. The glue roller has a low-speed auto-rotate function, so as to avoid the glue drying on the glue roller. 9. A frequency conversion motor is used to supply power, realizing step-less speed adjustment and reliable and synchronous interlock with the following devices. The frequency converter used is an internationally famous brand product with stable and reliable performance and a low failure rate.
