DESCRIPTION: | |

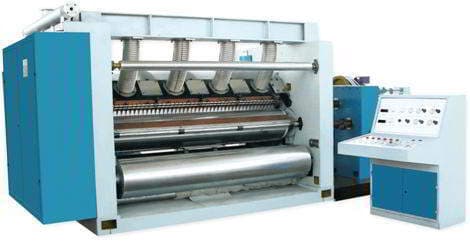

1.Designed speed:120m/min-200m/min 2.Effective width:1400mm-2500mm 3.Flute profiles:A,C,B,E available. 4.Separate upper and lower roll from the main machine, with guideway equipped to the bridge, easy to replace rolls. 5.Gimbal transmission, individual driving box to improve running stability.Gears are all lubricated with special grease to provide outstanding sealing performance and reliable lubricating. 6.Guideway slippling of the gluing roll and upper roll, easy to replace rolls. 7.Pneumatic control of the upper roll, press roll and gluing roll. 8.The bearings of corrugated rolls and press rolls are lubricated by high temperature lubricating grease. 8.Motorized digital read out device.Manual adjustment of the glue application amount. 9.The corrugated roll is made of special alloy steel of 48CrMo with grinding process and induction hardened with hardness of HRC56-60 | |
COMMERCIAL DETAILS: | |
| Payment Terms | T/T |
MORE DETAILS: | |
| Packaging | Pallet |
| Sample Offered? | Not Applicable |
| Sample Terms | Not Applicable. |
| * Prices are subject to change. Please contact the supplier for the latest price. | |
It's quick & easy.
Manager - Dpack Packing Machinery Co., Ltd.
Member Since: Jan 2009
| Address Line1 | No.88 Yongding Road, Haidian D |
| City | Beijing |
| Postal Code | 100039 |
| Country | China (Mainland)  |
| Region | East Asia |
Beijing Dongbao Packing Machinery Co., Ltd- leading manufacturer of corrugated board machinery. We are in a position to supply whole corrugated carton production line, also all allied parts. If you ...
Beijing Dogbao Cardboard Packing Machinery Co.,, Beijing, China (Mainland)
We are leading manufacturer of corrugated board machinery from China, established in 1985. We are in a position to supply whole corrugated cardboard production line, also all allied parts. If you lik...
Beijing Dogbao Cardboard Packing Machinery Co.,, Beijing, China (Mainland)
? Max. sheet length: 2300mm ? Automatic stack and collect cardboard. ? With electromotion transmit horizontally ? Vertical meet cardboard adopt wide conveyer belt to transmit ? The sheets or height...
Dpack Packing Machinery Co., Ltd., Beijing, China (Mainland)
Beijing Dongbao Packing Machinery Co., Ltd- leading manufactuer of corrugated board machinery from China, established in 1985,production speed:60-220mm,the paperboard can be 2ply,3/5/7/ply,width:1400m...
Beijing Dogbao Cardboard Packing Machinery Co.,, Beijing, China (Mainland)
We are leading manufacturer of cardboard machinery in China,established in 1985. We are in a position to supply whole corrugated cardboard production line, also all allied parts. If you like to add n...
Beijing Dogbao Cardboard Packing Machinery Co.,, Beijing, China (Mainland)
1.Corrugated Cardboard Production Line incluedes mill roll stand, single facer, pre-heater, conveyer bridge, gluing machine, double facer, slitter scorer machine, cut off machine and stacker. 2.We ca...
Beijing Dogbao Cardboard Packing Machinery Co.,, Beijing, China (Mainland)
1.Designed speed:200m/min 2.Maximum stacking leight:1800mm 3.Maximum stacking length:3000mm 4.Electro-hydraulic up and down of the lifter, motorized transverse output. 5.Plane delievery belt ensures s...
Beijing Dogbao Cardboard Packing Machinery Co.,, Beijing, China (Mainland)
We can offer you advanced, medium and common lines for single wall, double wall and triplex wall corrugated cardboard production with speed ranging from 60m/min to 220m/min and width ranging from 1400...
Dpack Packing Machinery Co., Ltd., Beijing, China (Mainland)
Carton making machine includes mill roll stand, single facer, pre-heater, conveyor bridge, gluing machine, double facer, slitter scorer and cut off , stacker, box gluing machine ,etc. We can manufat...
Dpack Packing Machinery Co., Ltd., Beijing, China (Mainland)
1.Designed speed:100m/min 2.Available width:1400mm-1800mm 3.Flute profile:A,C,B,E 4.Flooding system lubrication of the reduction gearbox, isolated power supply, frequency conversing control of the mai...
Dpack Packing Machinery Co., Ltd., Beijing, China (Mainland)
This machine has an automatic sheet sending function which can quickly send the sheet to the right position for sealing, and there are 4 sets of heat-melt cutting and sealing equipment working at the ...
Dongguan Hongming Machinery Co.,Ltd, Dongguan, Guangdong, China (Mainland)
This machine is mainly used for fixing the Bottom-locked. It uses the high temperature adhesive tape which can lower the cost, and angles are in good shape and beautiful. It has high speed and low pri...
Dongguan Hongming Machinery Co.,Ltd, Dongguan, Guangdong, China (Mainland)
HM-ZD500A is now China's most advanced and most efficient equipment of producing perfect bottom -locked cardboard cartons like shoe boxes, shirt boxes, garment boxes, gift boxes,chocolate boxes etc. ...
Dongguan Hongming Machinery Co.,Ltd, Dongguan, Guangdong, China (Mainland)
We sell carton cutting machines. Please inquire us to know more about this and other machines from our compnay.
Dongguan Hongming Machinery Co.,Ltd, Dongguan, Guangdong, China (Mainland)
As European models, XHBC1050 series punching & die-cutting machine, die-cutting & stamping machine, and holographic positioning & stamping machine feature high precision, high speed, durability and st...
Xiamen Xianghan Co., Ltd., Xiamen, Fujian, China (Mainland)
The standard seven ply line is made up of single facer (3; mill roll stand (5~7; preheater (6; multiplex preheater (preheating roll diameter should be f900mm for speed above 120m/min; conveying bridge...
Xiamen Xianghan Co.,Ltd, Xiamen, Fujian, China (Mainland)
This finished product, single wall corrugated board, is mainly introduced as inner packing material. It can be also used as outer packing material for light or small-sized commodities. Four flutes A...
Xiamen Xianghan Co.,Ltd, Xiamen, Fujian, China (Mainland)
we are manufacture for corrugated paperboard production line and converting machinery in China.Our main machine such as N.C Cutter, N.C Slitter Scorer, High speed single facer, Hydraulic mill roll sta...
Winpack Machinery, Yantai, Shandong, China (Mainland)
High speed corrugated paperboard production line 3/5/7layer. Production speed 150m/min. Machine width from 1400mm to 2200mm. Complete corrugated paperboard production line is compose of shaftless mi...
Winpack Machinery, Yantai, Shandong, China (Mainland)
This machine has adsorbing wind belt transmission function, and settle the problern of corrugating paper arch and hold up.Adopt bottom paper pushing feeding paper,orientation exact,convenience stable,...
Fushun Pack Electromechanical Co.,Ltd, Fushun, Liaoning, China (Mainland)
Adhering to all the printing and packaging needs of our client's, Senior Print Pack Machinery Company is a leading manufacturer and exporter of corrugated board, box making machinery and other allied ...
Senior Print Pack Machinery Co., Hyderabad, Telangana, India
Adhering to all the printing and packaging needs of our client's, Senior Print Pack Machinery Company is a leading manufacturer and exporter of corrugated board, box making machinery and other allied ...
Senior Print Pack Machinery Co., Hyderabad, Telangana, India
Two Ply Combined Corrugating Machine Attached with Rotary Sheet Cutter *Flexo Board Printer, Creaser, Slotter, Single/Two/Three/Four Colour *Board Cutter/Paper Shearing Machine *Single/Two Co...
Acme Machinery (India) Pvt. Ltd., Mumbai, Maharashtra, India
Acme Paper Bag Making Machines are designed to meet all your requirements of Paper Bags, both Flat as well as Satchel type (with side folding on both sides) made from kraft Paper, Glassine, Butter Pap...
Acme Machinery (India) Pvt. Ltd., Mumbai, Maharashtra, India
KY2800/3800/4800 - Able to pack different kind of products such as Sachet, Blisters, Wafer, Bread, Soaps, Mosquito Coil, etc. - Box Size Range is L 120 - 150mm | W 40 - 100mm | H 20 - 80mm Features: ...
PT. Krisna Maju Makmur, Sidoarjo, Jawa Timur (East Java), Indonesia
INTRODUCTION: The Vertical Fluter is designed to simulate the corrugating of a medium. Its compact, vertical design minimizes benchspace. APPLICATIONS: Corrugated medium SPECIFICATIONS: * Tempera...
Testing Machines Inc., New Castle, Delaware, United States
Heat treatment and precision corrugating roll. Corrugating roll and press roll by hydraulic loading. Independent glue roll driving drive. Micro-adjustment for glue mechanism. Quick cassette change equ...
Yueli Machinery, Taichung, Taiwan
Optional weight rolls or shoe press for reliable heating performance. Complete heating and cooling section. Canvas can hydraulically lift up 100mm for easy maintenance.
Yueli Machinery, Taichung, Taiwan
Twin rotary helical knife ensures higher performance with lower noise and longer service life. Driven by servo motor with real-time calculation system. Accurate cutting length control with digital dis...
Yueli Machinery, Taichung, Taiwan
This system is designed with the distributed control method. Several microprocessor-based controllers communicate via high speed data network to offer an expandable and flexible system, consist of the...
Yueli Machinery, Taichung, Taiwan
