Xianyang Taist Test Equipment Co., Ltd.

DESCRIPTION:

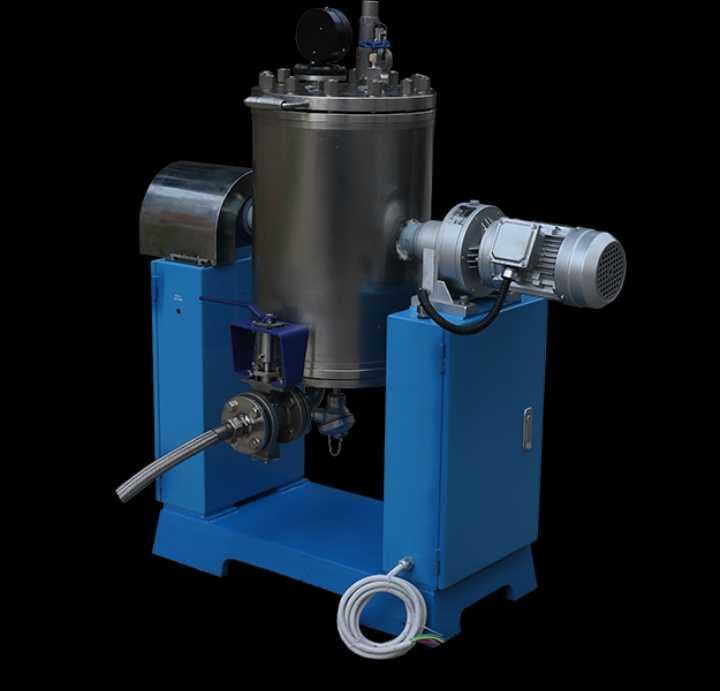

Main Functions: The equipment can chemically pretreat lignocellulosic raw materials according to raw material composition, chemical environment, temperature, pressure, atmosphere, and other conditions. "Blast" pulping requires exposing lignocellulosic raw materials to high temperature and pressure, under which conditions lignin softens and partial degradation of hemicellulose occurs. When the pressure suddenly drops, the water vapor infiltrating the pores of the cellulose expands rapidly, producing a "blasting" effect, which makes the cellulose finer. The PL1-00SP laboratory rotary digester can satisfy both cooking and blast pulping. The 316 L meets the material requirements of chemical pretreatment, and the external blasting chamber can complete blast pulping. Structures: Rotary digester, safety valve, intake valve, pressure relief valve, blast valve, blast chamber, heating system, temperature and pressure control system. Parameters: 1. Rotary digester volume: 15 L 2. Blast chamber volume: 30 L 3. Working pressure: 8 kg/cm² 4. Rotating speed: ≈1 r/min 5. Heating power: 4.5 kW 6. Motor power: 370 W 7. Accuracy of measuring temperature: ±0.1°C 8. Accuracy of temperature control: ±3°C 9. Dimensions: 1000 mm × 360 mm × 1230 mm Package size: 1030 mm × 510 mm × 1380 mm Net weight: 135 kg Gross weight: 165 kg
