Cheung Kong Machinery Equipment CO.,LTD.

DESCRIPTION:

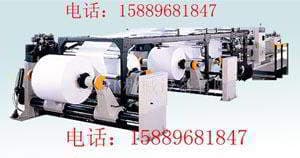

A4 /A3 cut size sheeter with automatic wrapping machine for copy paper A4 Size Paper Cutting Machine (CHM-A4 Paper Cutting Machine) This series of machine is used to cutting Big paper roll into A4, A3, B5 and 8.5*11 inch sizes, We also can design according to customers requirement, such as legal size, letter size etc.. Model: CHM-A4-4 MAIN SPECIFICATIONS: Paper Width: Gross width 900mm, net width 840mm Cutting numbers: 4 cutting-A4 210mm (width) Diameter of: Paper roll: Max. 1200mm. Min. 600mm Diameter of: Paper core: 3 or 6 inches or depend on the demand of clients Paper weight: 60-100gsm Sheet length: 297mm Ream amount: 500 sheets. Height: Max.62mm Max. Speed of production: 120m/min(depend on different paper) Max. Numbers of cutting: 404cutting/min Output of the ream: 3.2 times/min Load of cutting: 400gsm Cutting accuracy: about 0. 2mm Cutting requirement: constant speed, no break in reel, cutting all paper one time , eligible paper. Drive: AC frequency conversion and step-less Main power supply: 3*380V AC, 50HZ Voltage: 220V AC/ 24V DC Power: 32KW Compressing air consumption: 300NL/min Air pressure: 6 bar Edge cutting: 2*10mm
