DESCRIPTION:

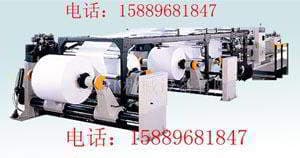

AC servo precision high speed sheet cutter CHM-1400/1700/1900 This series of machine is used to cut the paper roll into paper sheets. It adopts advanced technology of British and it is driven by AC servo motors, the high cutting speed reaches 300 cuts /min. And it can cut 8 paper rolls at one time. It is also equipped with automatic deflection rectify and antistatic device. The paper feeding and delivering units are automatic with the hydraulic system. The human and machine interface system could make operation become much easy and more convenient. Model: CHM-1400/1700/1900 MAIN SPECIFICATIONS: weight of paper: 60-550gsm Cutting accuracy: 0. 5mm tolerance allowed Max. Cutting speed: 300sheets/min, operation speed depends on cut length, paper quality, paper grade&grammage. Max. Cutting meter speed: 300m/min Cutting length range: 450-1450mm Max. Diameter of reel: 1800mm Sheet stack height: 1300mm Max. Width of cutting paper: 1400mm/1700mm/1900mm MAIN WORK SECTIONS: Cutting section: 2. Computer operation interface, easy to operate. 2. High precision special alloy steel knife 3. Cutting accuracy is 0. 5mm tolerance Paper feeding section: 1. Double limbs oil pressure shaftless paper rack 2. Auto tension control system 3. Auto paper edge guiding system Electric control section: 1. PLC control system 2. AC servo driving motor 3. High precision encoder&cutting 4. Long endurance Slitting knife: 1. Three sets of slitting knives 2. Used for trimming and middle slitting Paper conveyer system 1. The number of overlapping sheets can be adjusted by this section. 2. The single sheet outlet can be adjusted.
