Basic Member
Get a free quote or proposal for
DESCRIPTION: | |

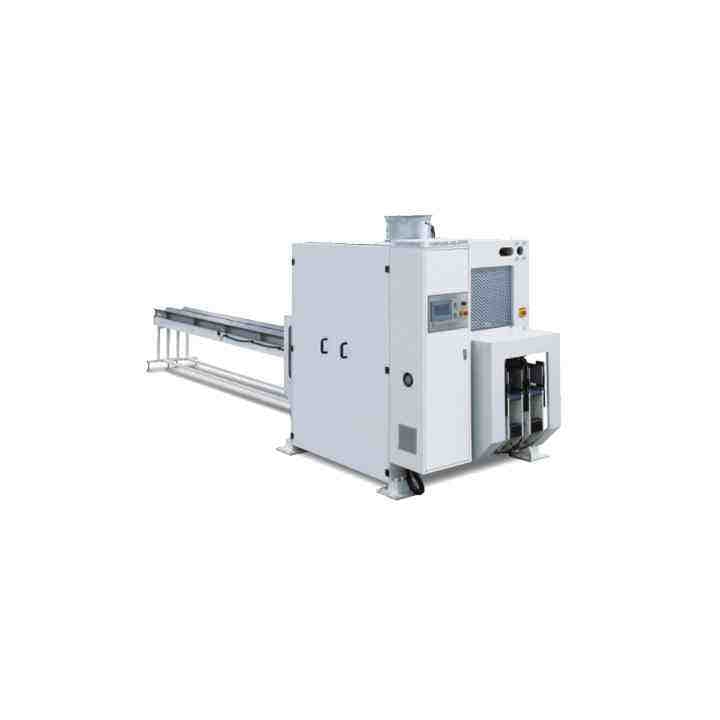

Mode DH-V II <br><br> Log Length 3500/2850/2000/1780mm <br> Lane Quantity 2 lanes <br> Design Machine Speed 150 cuts per min, 2 rolls per cut <br> Operation Speed 140 cuts per min, 2 rolls per put<br> Finish Product Size Outter diameter 65-110mm, cutting length 50-300mm, tail length 25-100mm <br> Cutting Length Adjusting Set on operation panel, tolerance ±1mm, not including tail and head <br> Driving control of pusher by servo motor <br> Blade Grinding auto grinding, pneumatic wheel fixed angle grinding, parameter setting on the panel <br> Diameter of blade 610mm <br> Grinder Feeding automatic <br> Clamp changeable <br> Procedure Control Siemens PLC <br> Installed Power 18kw <br> Operation Form Blade circulate and rotate, servo motor controls movement of log <br> Dust Collection System Dust absorb for grinders, equipped with exhaust fan and 10 collect bags <br><br><br>Optional Items:<br><br>Cooling lubrication system, controlled by HMI<br>Cutting blade height adjustment, controlled by HMI<br> | |
COMMERCIAL DETAILS: | |
| Min Order Qty. | 1 Set |
| Avg. Lead Time | 40 Days |
| FOB Price * | 20000 per Set |
| Payment Terms | 30% advance payment, balance payment at delivery |
| Payment Options | L/C, T/T |
| Place of Origin | Guangdong China |
| Shipping Port | Guangzhou Port China |
MORE DETAILS: | |
| Product Condition | New |
| Brand Name | TECHSURE |
| Supply Capacity | 4 Sets PerMonth |
| Packaging | wooden case packing |
| Sample Offered? | Not Applicable |
| * Prices are subject to change. Please contact the supplier for the latest price. | |
