Parason Machinery India Pvt Ltd

DESCRIPTION:

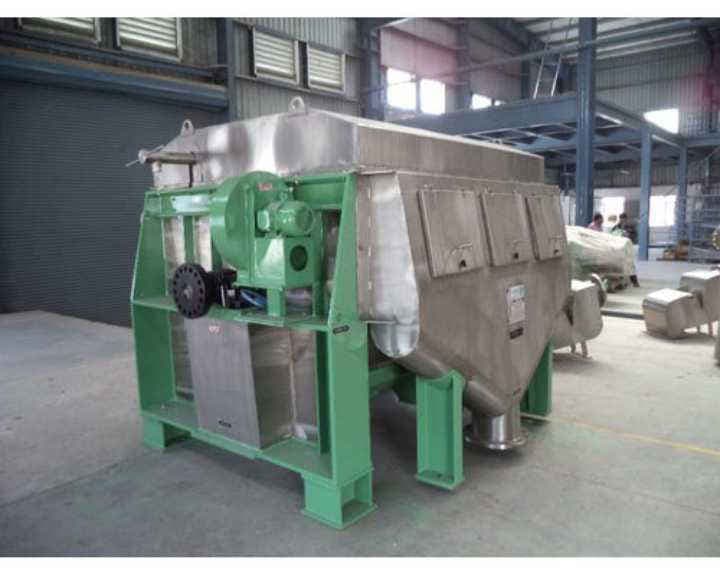

Application & Salient Feature: Parason Folded Thickner in comparison to normal thickeners provides a considerably larger filtration area. This can translate into smaller space requirements or higher capacity for specific floor space. The wire clothing is divided into sectors so that each section can be replaced without removing the drum/cylinder. The stock suspension fed into the cylinder through an inlet which evenly distributes the stock across the width of the thickener. The water passes through the wire mesh and the fiber mat is formed on the surface of the cylinder. Between the stock level in the vat and the surface of the drain water inside the cylinder, a hydrostatic pressure difference (Ah) is produced, which provides continuous filtration. The surface of the wire cloth cleaned by the shower. as washer for deinked pulp, removal of fillers and fines from recycled fiber pulp as W=washer for recycled fiber, chemical, and mechanical pulp effluent sludge Models : MODEL = TPD = POWER (Kw) = AREA (M2) 2 = 30-50 = 7.5= 38.8 2.5 = 50-70 = 9.5 = 49.4 3 = 80.120 = 11 = 58.3 3.5 = 120-150 = 11 = 68.9 4 = 150-180 = 15 = 77.4 4.5 = 180-220 = 15 = 87.12 Specifications / Additional Details: Usage/Application - Industrial Grade Standard - Technical Grade Physical State - solid Brand - Parason Machinery Motor RPM - 1500 Capacity - 30 - 220 TPD Power - 7.5 kW - 15 kW Area - 39 m.sq to 90 m.sq
