DESCRIPTION:

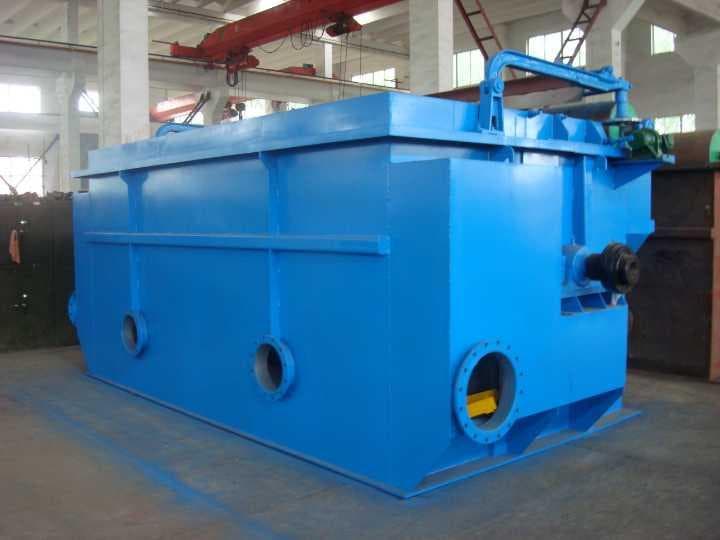

Gravity Cylinder Thickener for stock preparation Gravity Cylinder thickener is used for washing and thickening low-consistency pulp in paper making and pulping process. It's gravity filtration equipment. Technical Parameters of Gravity Cylinder Thickener Filter area: 40-60m2 Density of inflow pulp: 0.5-1% Density of outflow pulp: 4-6% Capacity of Rich-wheat-stew pulp: 40-90tons/Day Capacity of Mixed waste paper: 60-120tons/Day Capacity of Reed pulp: 80-150tons/Day Capacity of Chemical wood pulp: 120-210tons/Day Power of motor: 15-22kW Features of Gravity Cylinder Thickener Hood: Made of stainless steel rivet, the appearance is neat. Tank: The tank supports the transmission and all the components, which are welded by steel plates, including the feeding box, the discharging box, and the intermediate tank. Seal: Sealed at both ends with a packing seal. Main drive form: It adopts a direct-connected suspension reducer to reduce speed and a frequency converter to adjust the speed. Users can choose the best speed according to production needs. Washing device: The nozzle on the spray pipe sprays 0.6MPa of high-pressure water to wash off the adhered slurry on the filter surface, and rinses the filter to obtain the regeneration ability of the filter.
