Samway High Speed Uncoiling-Leveling-Cut
DESCRIPTION: | |

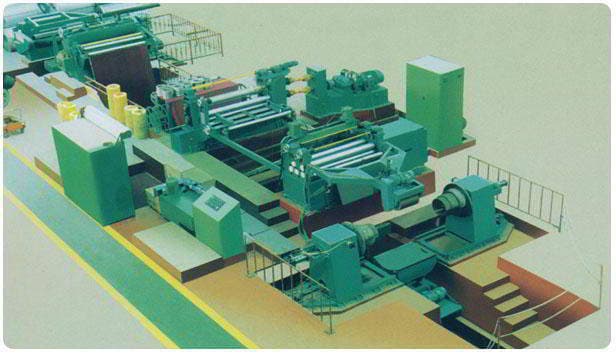

Samway high speed uncoiling-leveling-cut to length-stacking line This production line is used for coil with different specifications, through uncoiling, leveling and cutting to length to flattened plate as needed length and width. This line is composed of coil car, double support uncoiler, pre-leveler, finish-leveler, length gauge, cut to length machine, stacker, servo driven system, etc. as well as pendulum middle bridge, pressing and guiding device and steering device. main technical parameter model T44QK- T44QK- T44QK- T44QK- name 2x1300 2x1600 3x1300 3x1600 Coil thickness(mm) 0.3-2 0.3-2 0.3-3 0.3-3 Coil width(mm) 800-1300 800-1600 800-1300 800-1600 Cutting length range(mm) 10.0-9999 10.0-9999 10.0-9999 10.0-9999 Stacking length range(mm) 300-4000 300-4000 300-4000 300-4000 Cutting length precision(mm) ±0.3 ±0.3 ±0.5 ±0.5 Leveling precision(mm/m2) 1-2 1-2 1-2 1-2 leveling speed (2000mm/min) 35pcs 35pcs 35pcs 35pcs coil weight(T) 10 10 20 20 roll Dia.(mm) 85 90 90 100 | |
COMMERCIAL DETAILS: | |
| Payment Terms | T/T |
MORE DETAILS: | |
| Packaging | Wooden box |
| Sample Offered? | No |
| Sample Terms | Not Applicable. |
| * Prices are subject to change. Please contact the supplier for the latest price. | |
