DESCRIPTION:

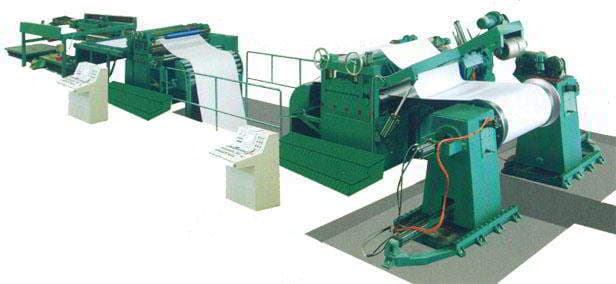

stainless color plate uncoiling-leveling-cut to length-stacking production line This line is used for stainless coil with different specifications, through uncoiling-leveling-cutting to flattened plates as needed length. This line is reasonable in layout, easy operation, high level of automation which could processing all kinds of stainless coil, colored coil, aluminum coil, galvanize coil or painted coil. This line is broadly applying in metal plate processing industry, like car, container, household appliance, packing, construction material, etc. This line is composed of coil car, double head uncoiler, hydraulic pressing & guiding, shovel head, pinch device, leveler, encoder and length gauge, hydraulic pendulum shearer, feeder, pneumatic stacker, unloading car, electric system, etc. as well as rollaway nest, steering device, etc. main technical parameter MODEL T44QK- T44QK- T44QK- T44QK- T44QK- T44QK- T44QK- T44QK- NAME 0.8x1000 0.8x1250 1.5x1250 1.5x1600 2x1250 2x1600 3x1600 3x2000 Coil thickness(mm) 0.15-0.8 0.15-0.8 0.3-1.5 0.3-1.5 0.3-2 0.3-2 0.3-3 0.3-3 Coil width(mm) 600-1000 600-1300 800-1300 800-1600 800-1300 1000-1600 1000-1600 1000-2000 Cutting length range(mm) 10.0-9999 10.0-9999 10.0-9999 10.0-9999 10.0-9999 10.0-9999 10.0-9999 10.0-9999 Stacking length range(mm) 300-4000 300-4000 300-4000 300-4000 300-4000 300-4000 300-4000 300-4000 Cutting length precision(mm) ±0.3 ±0.3 ±0.3 ±0.3 ±0.3 ±0.3 ±0.5 ±0.5 Leveling precision(mm/m2) 1-2 1-2 1-2 1-2 1-2 1-2 1-2 1-2 leveling speed (2000mm/min) 15-18 15-18 15-18 15-18 15-18 15-18 15-18 15-18 Coil weight(T) 15 15 15 15 15 15 20 20 Samway is professional manufacturing all kinds of Leveling and Cut to Length Line, Slitting Line, Galvanizing Line and other related series products, etc, at same time focus on high-tech products research, design and development. Leveling and Cut to Length Line series with thickness from 0.18mm to 25mm, width from 200mm to 3000mm, cutting length tolerance within ±0.1mm which are apply for various specifications and different materials coil. Slitting Line with thickness from 0.25mm to 14mm, width form 200-3000mm. We have high, average, normal speed design in which high speed, high precision leveling line can reach to 35pcs/min by 2m length plate, high speed slitting line can reach to 120m/min.
