Stainless Moderato Uncoiling-Leveling
DESCRIPTION: | |

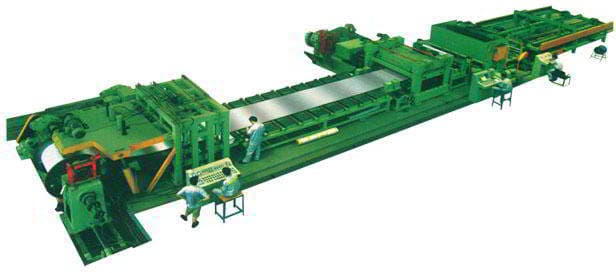

Samway Stainless moderato uncoiling-leveling-cut to length-stacking line This line is used for stainless coil with different specifications, through uncoiling-leveling-cutting to flattened plates as needed length. This line is composed of coil car, double head uncoiler, hydraulic pressing & guiding, shovel head, pinch device, leveler, encoder and length gauge, hydraulic pendulum shearer, feeder, pneumatic stacker, unloading car, electric system, etc. as well as rollaway nest, steering device, etc. main technical parameter MODEL/NAME JP 1-5 JP 2-8 JP 3-10 JP 4-14 JP 6-16 Coil thickness(mm) 1-5 2-8 3-10 4-14 6-16 Coil width(mm) 800-2000 800-2000 800-2000 800-2200 800-2200 Cutting length range(mm) 1000-6000 1000-8000 1000-10000 1000-12000 1000-12000 Cutting length precision(mm) ±0.5 ±1.0 ±1.0 ±1.0 ±1.0 Leveling precision(mm/m2) 1-3 1-3 1-3 1-3 1-2 Line speed(m/min) 0-24 0-24 0-24 0-18 0-18 Stacker capacity(T) 15 15 15 15 15 Coil weight(T) 30T 30T 30T 30T 30T | |
COMMERCIAL DETAILS: | |
| Payment Terms | L/C |
MORE DETAILS: | |
| Packaging | Wooden box |
| Sample Offered? | No |
| Sample Terms | Not Applicable. |
| * Prices are subject to change. Please contact the supplier for the latest price. | |
